Macht Busway Trunking System
Power is smoothly distributed from one end of the building to the other using the MACHT electrical power supply distribution system.
Learn More
Building Information Modeling (BIM)
An intelligent 3D model-based process that gives our customers the insight and tools to more efficiently plan, design, construct, and manage Busduct system.
Learn More

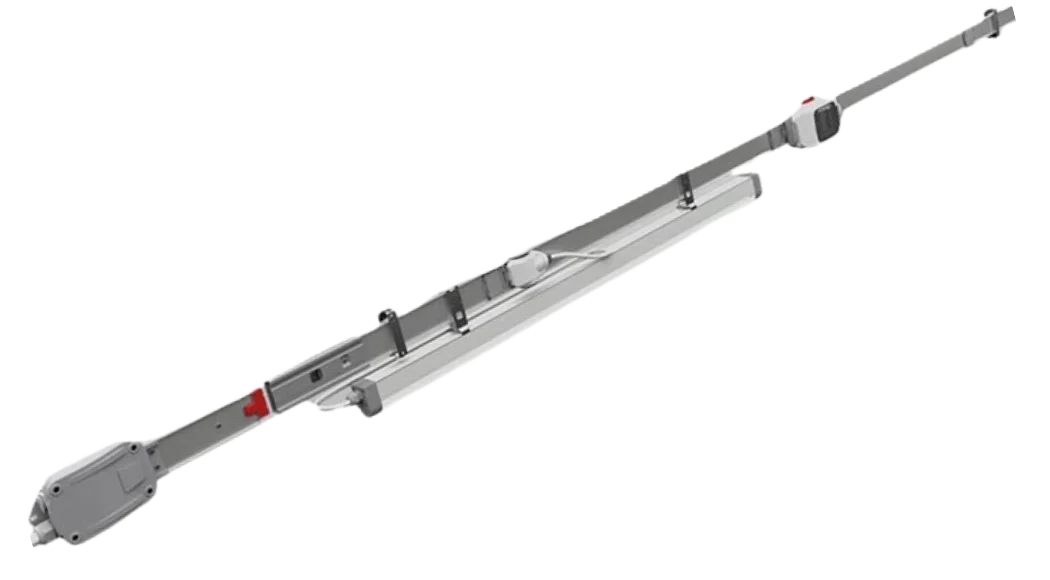

Macht Compact
Compact Busway is the smallest line of the Medium Power range. It is the ideal solution for energy distribution in small and medium sized industries.
Learn More
Innovation, Dedication and a Commitment to our customers.
About us
More than 30 years’ experience in designing, development & manufacturing of Sandwich Busway System. Providing reliable busways to distribute power over long distances, Horizontally as well as vertically with less energy loss.
Vision & Mission Statement
At MACHT, we envision a future where our innovative sandwich busway system takes the lead in transforming electrical power distribution. Our aim is clear – to be a global leader, setting benchmarks in efficiency, sustainability, and connectivity. We are determined to be recognized for innovative solutions, exceptional quality, and a strong commitment to customer satisfaction, establishing our position as a symbol of excellence in the industry.
MACHT’s mission is to provide innovative and high-quality sandwich busway systems as the sole manufacturer. We are dedicated to creating a strong and flexible system that powers progress and supports modern energy networks while being environmentally conscious.
Meet The
Global Standard
Meet The
Global Standard
MACHT busway offers a secure, dependable, and economically efficient solution for the distribution of electrical power in both commercial and industrial settings. A reliable power source for multi-story structures and industrial applications, ranging in capacity from 400A to 6300A
ENGINEERING
& DESIGN
Benefits OF Busbar System
-
Efficient -
Compliance with industry standards -
Safe and Swift Installation -
Space Specifications
-
System life span -
Flexibility -
Insulation Specifications -
Easy troubleshooting -
Fire- Barrier
Applications
MACHT offers Sandwich Busbar trunking for Low Voltage Power Busbar Solutions from 400A – 6300A. Sandwich Busbar trunking finds application in power transfer and distribution solutions replacing cables between:
-

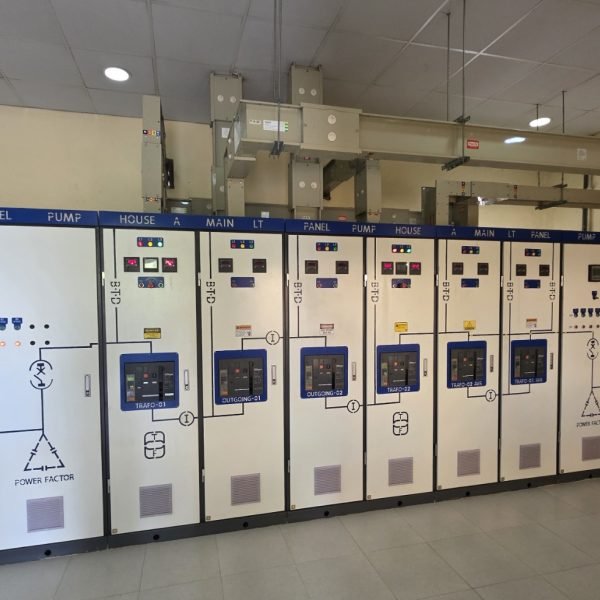

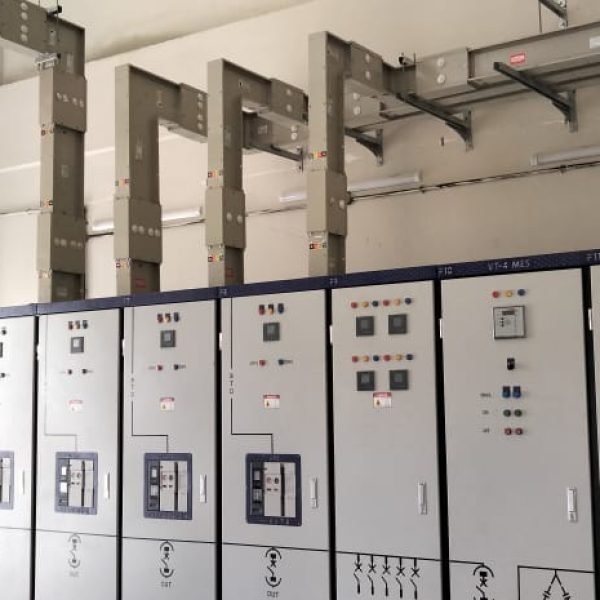

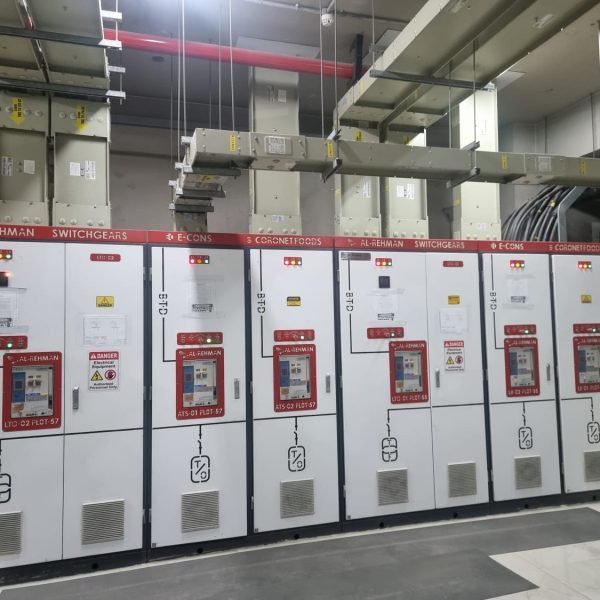

Transformer to Switchgear Panels -
Interconnection between Switchgear Panels -
Diesel Generator to Synchronizing/Switchgear Panels -
Rising mains or Vertical distribution -
Horizontal distribution
Above Applications will find Transmission and Distribution solutions in following segments.
- Process plants, Manufacturing Industries & Industrial Offices
- Commercial, Residential real estate & Hospitals
- Infrastructure establishment – Air ports, Metro, Railways, Ports
- Shopping Centres, Exhibition Centres & Warehouses,
- IT Parks, Data centers solutions, Solar farms.
The Busbar Division of MACHT has been continuously addressing the market needs over past three decades in various applications. With the combination of Supreme range, vast experience in R&D, engineering, state of art manufacturing plants, in-house testing facilities, and strong project management is aimed to provide one stop solution for all your Power Busbar needs.
Electrical

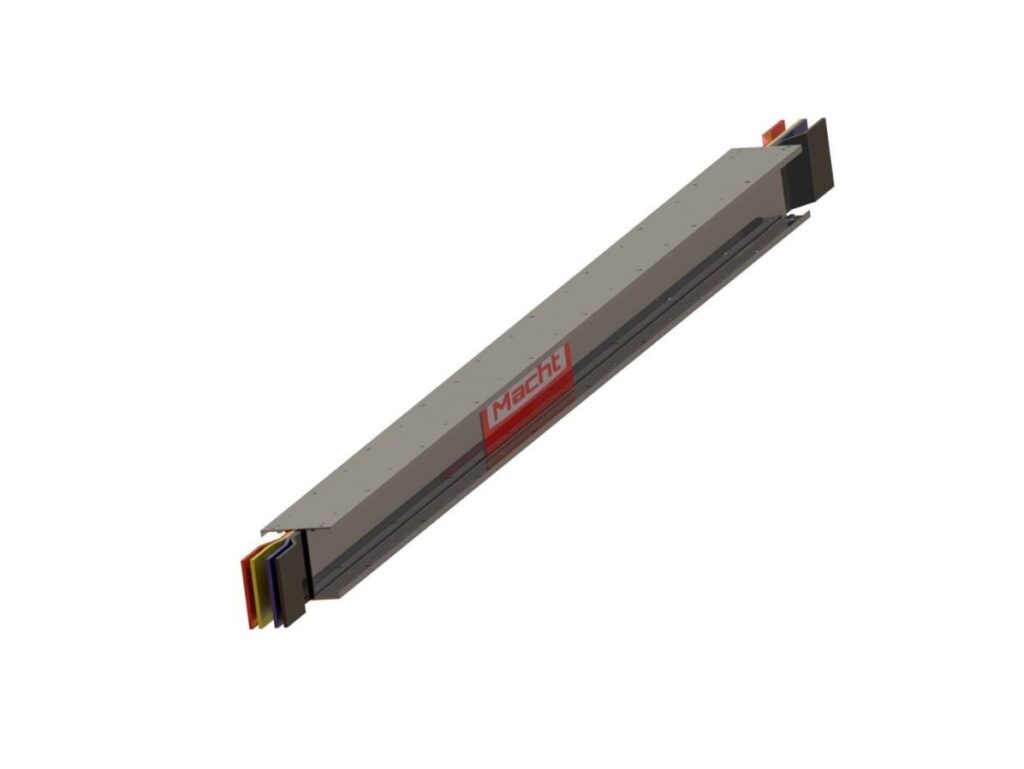

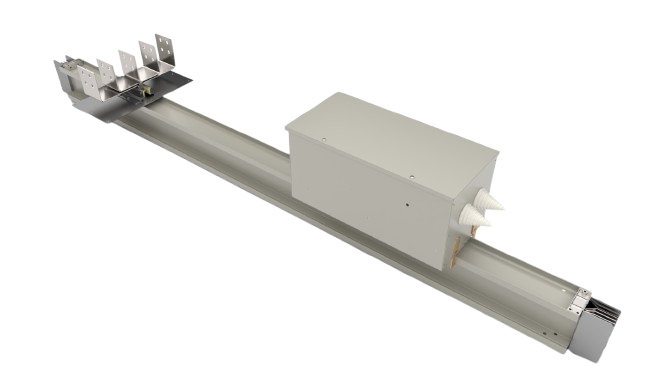

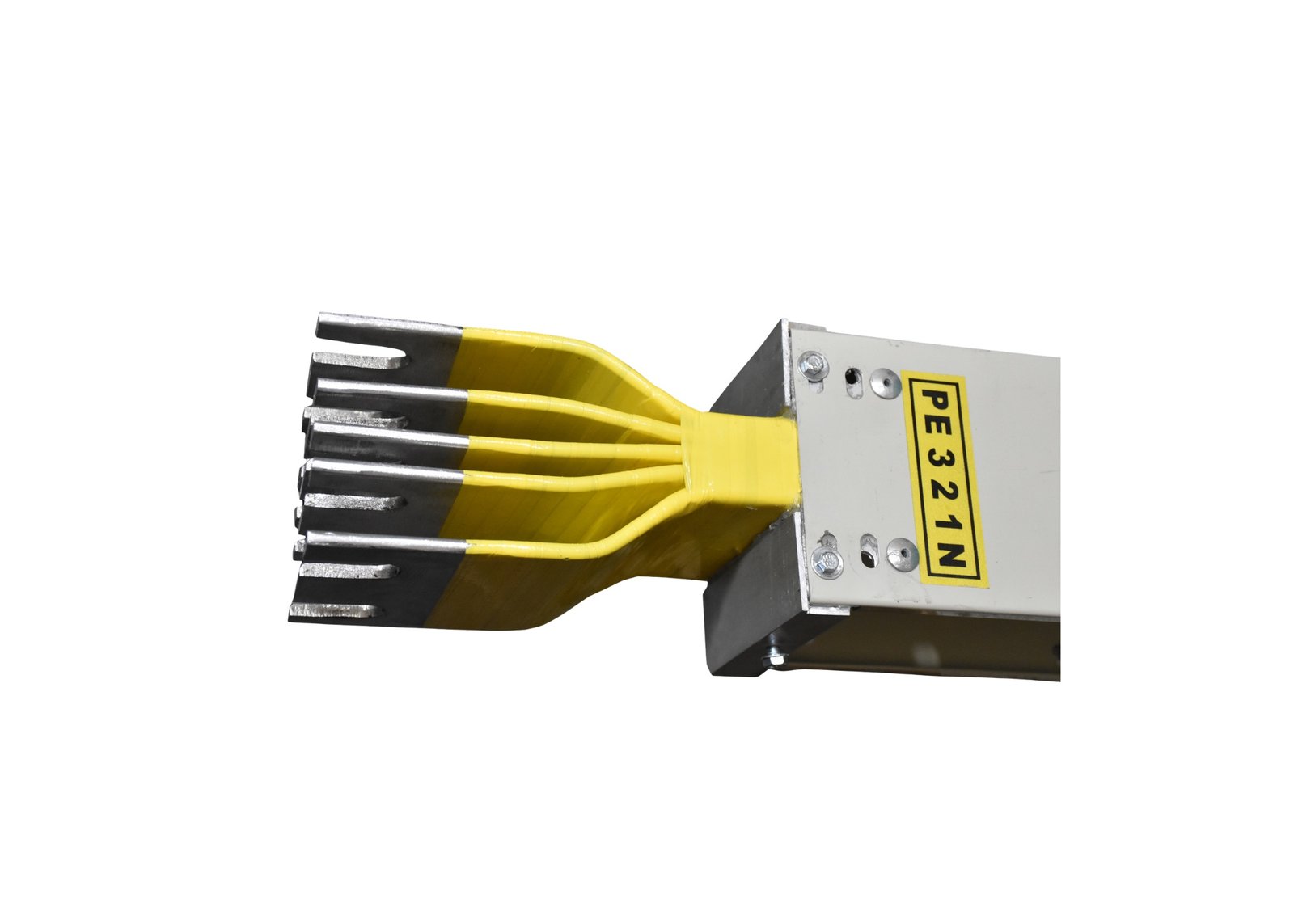

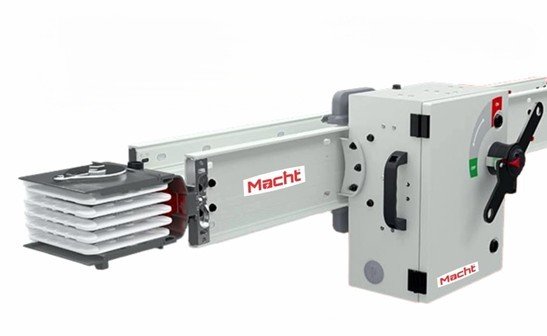

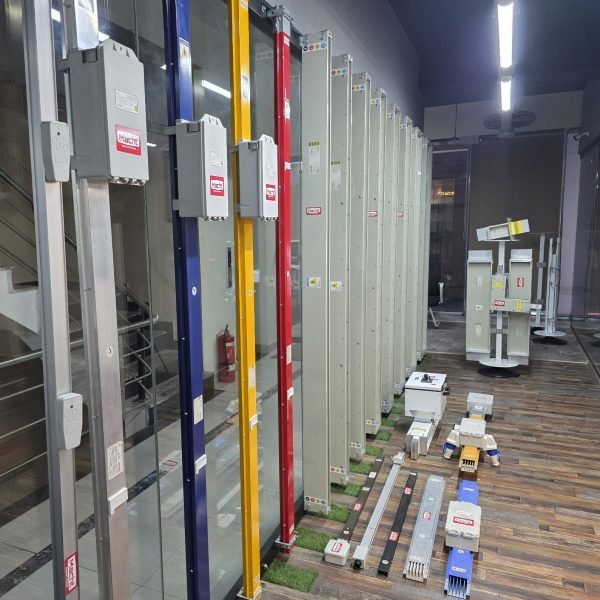

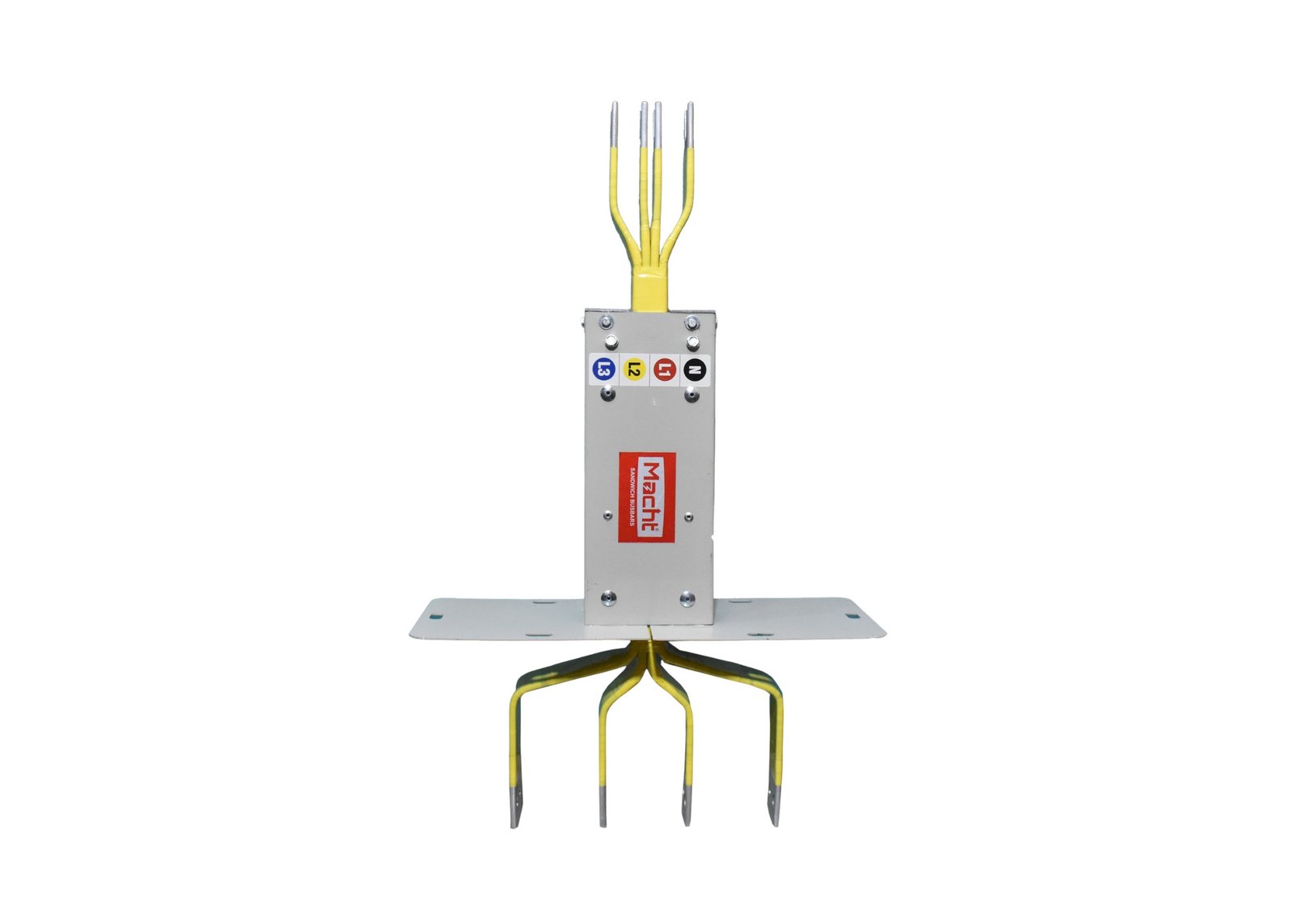

Sandwich Busbar System
MACHT Busbar Systems are utilized for both vertical and horizontal energy distribution and transmission. Furthermore, these can be employed in sections of factories and buildings where electrical outlets are not necessary for transmission purposes alone. Its unique design results in the least amount of voltage drop.
GENERAL FEATURES:
Housing = Extruded Aluminum, RAL 7032 with cooling fin
Conductors = Full-length tin-plated Aluminum or Copper conductor
Insulation = Insulated with Epoxy resin & Mylar
BUSBAR CONFIGURATION:
- 3 Phase + Integral Ground Earth
- 3 Phase + 100% Neutral + Integral Ground Earth
- 3 Phase + 100% Neutral + 50% Internal Earth + Integral Ground Earth
- 3 Phase + 100% Neutral + 100% Internal Earth + Integral Ground Earth
- 3 Phase + 200% Neutral + Integral Ground Earth

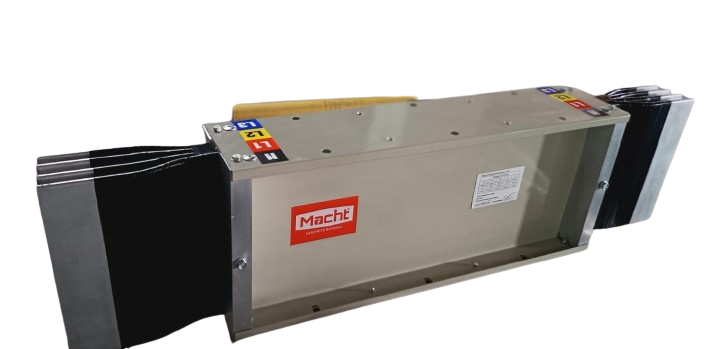

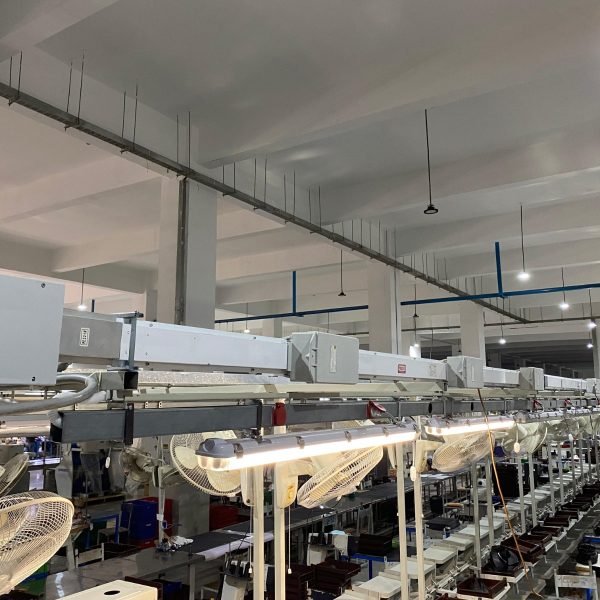

Horizontal Busbar
MACHT Busbar Systems are utilized for both vertical and horizontal energy distribution and transmission. Furthermore, these can be employed in sections of factories and buildings where electrical outlets are not necessary for transmission purposes alone. Its unique design results in the least amount of voltage drop.
-
Transformer to Switchgear Panels -
Interconnection between Switchgear Panels -
Diesel Generator to Synchronizing/Switchgear Panels -
Rising mains or Vertical distribution -
Horizontal distribution

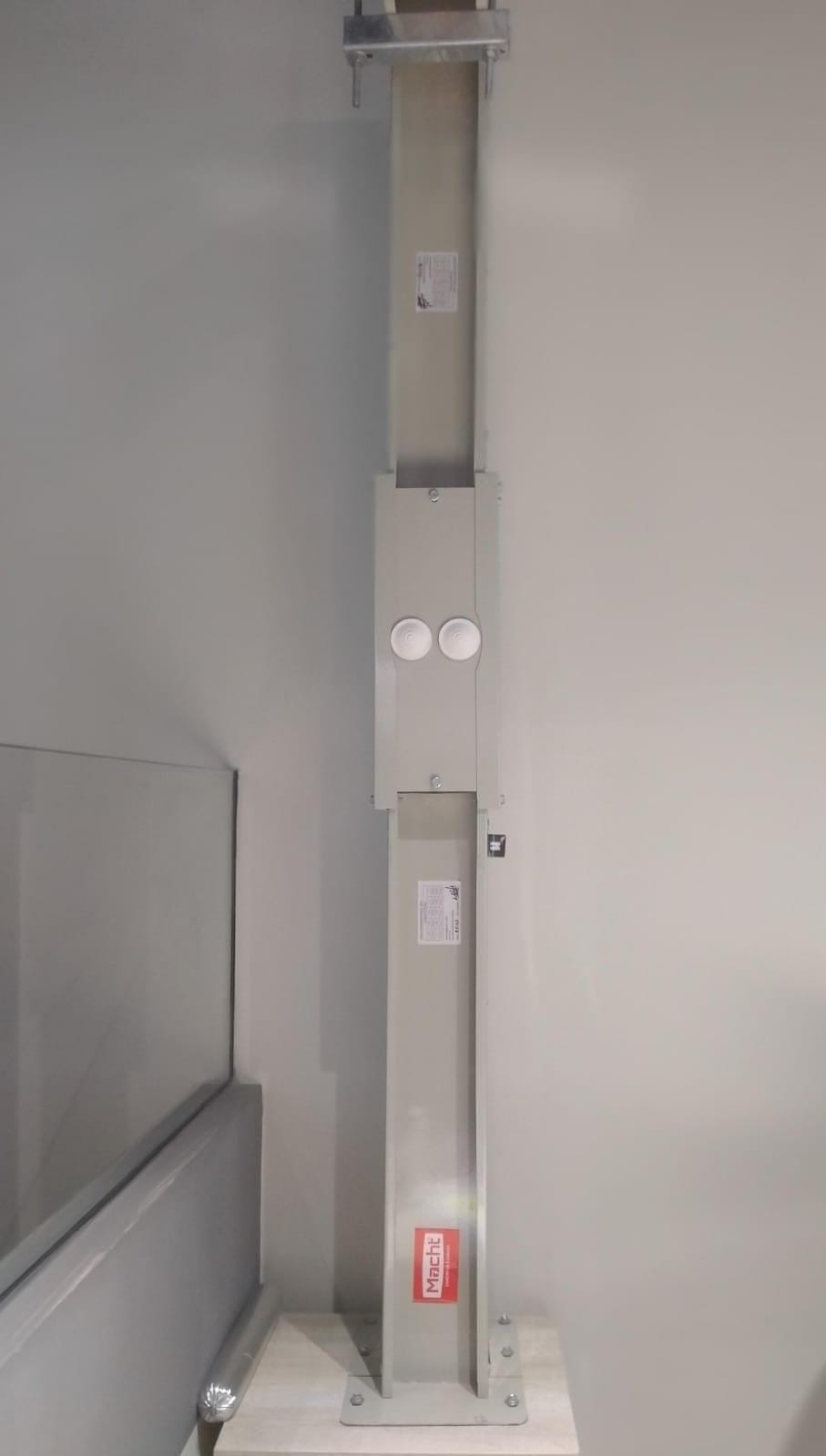

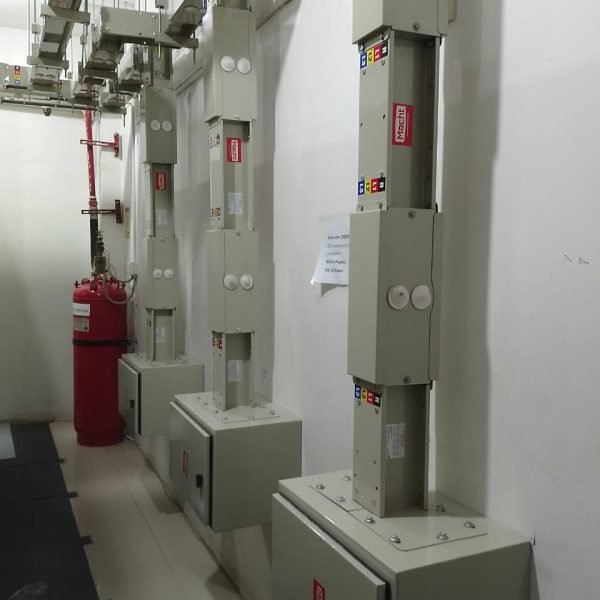

Vertical Busbar
When installed vertically, these systems operate as rising mains with tap-offs for specific levels. Certified fire barriers at floor points increase safety. Installing protective devices along
the busbar run, like as fuses and circuit breakers, reduces the requirement for large
-
Textile Mills -
Iron and Steel Foundries -
High rise – Buildings -
Automotive Industries -
Expo Centers
-
Hotels -
Shopping Malls -
Hospitals -
Office Buildings
EXPERIENCE
0
+
Over 20 Years Of Experiences Since 2001
FACTORY CAPACITY
0
+
Metres Production Each Day
PROJECTS
0
+
Over 2000 Projects Completed Worldwide
EXPERIENCE
$
0
m
Over 50 Millions Revenue Every Year

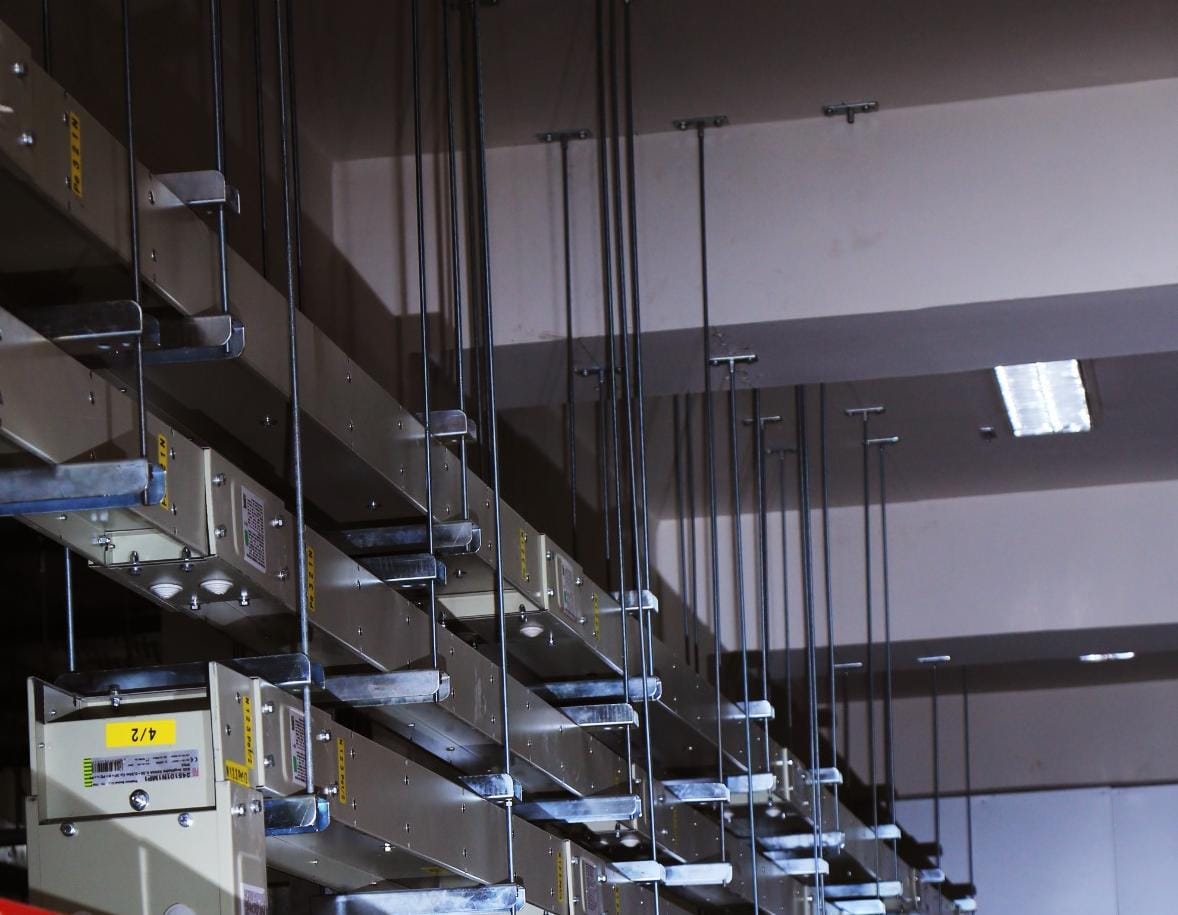

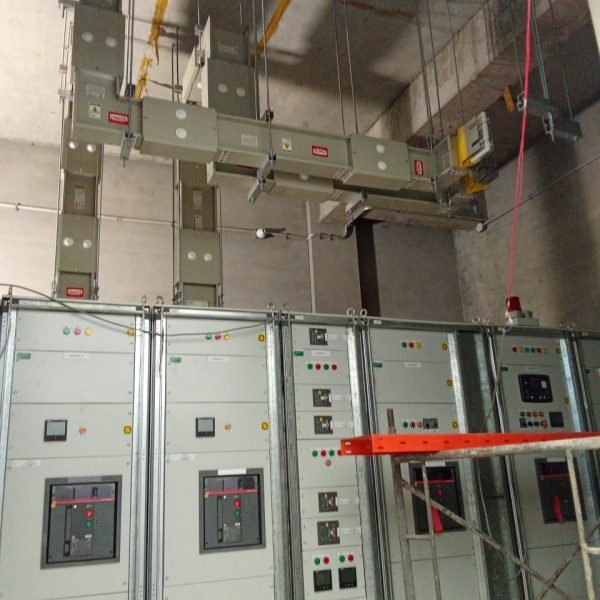

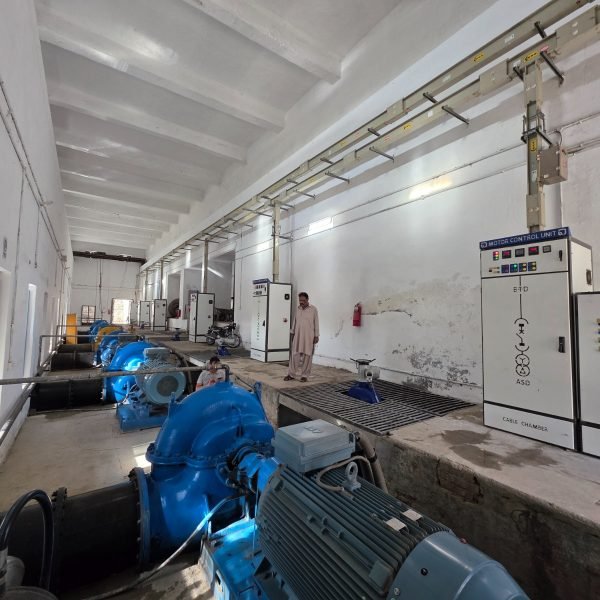

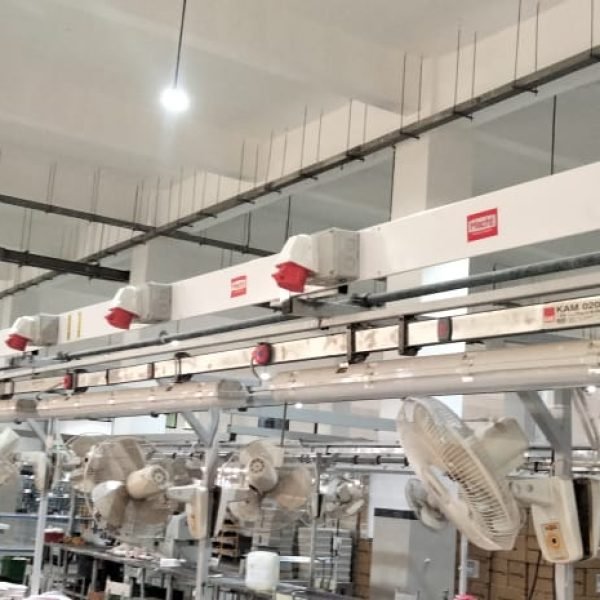

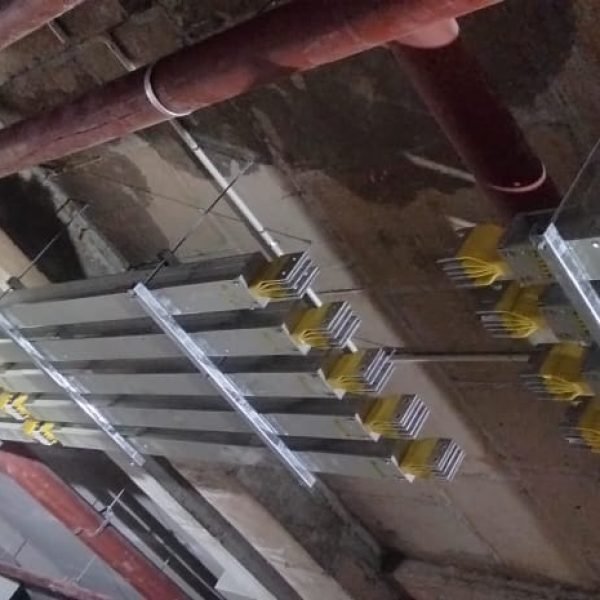

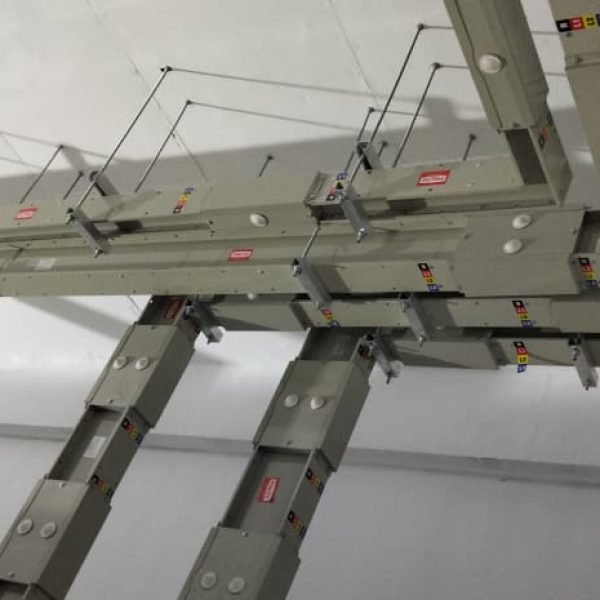

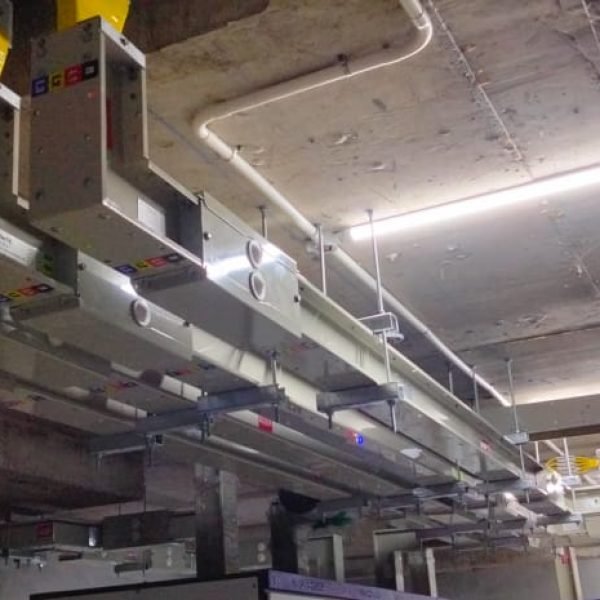

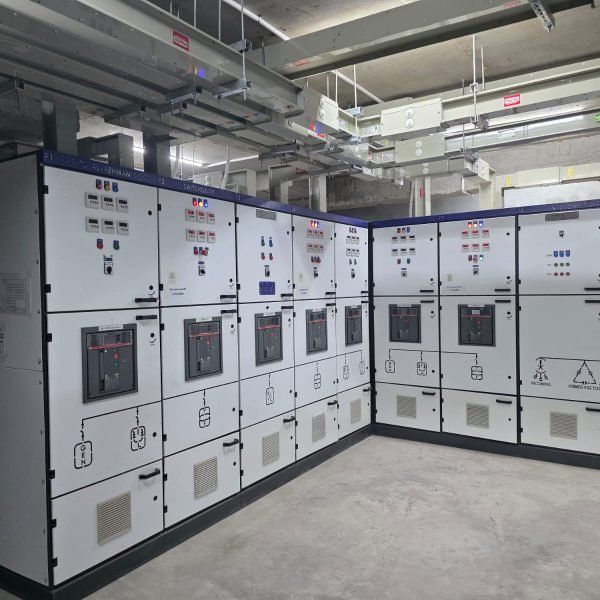

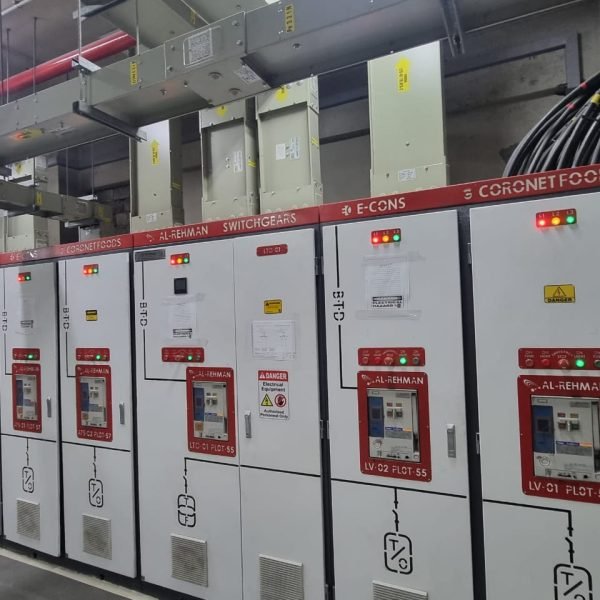

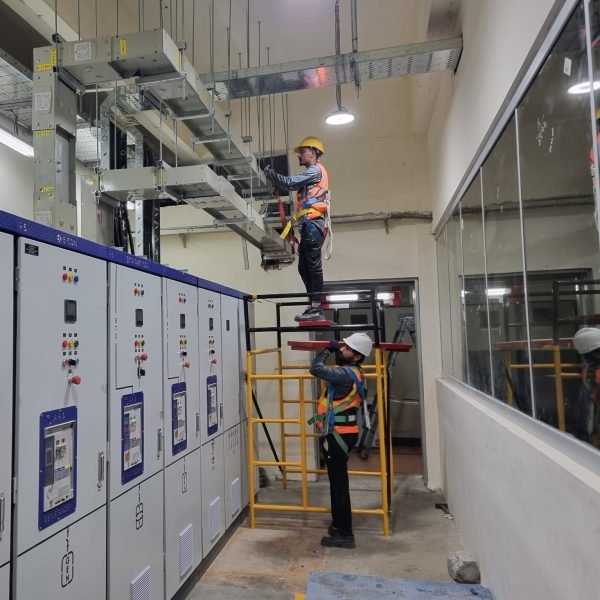

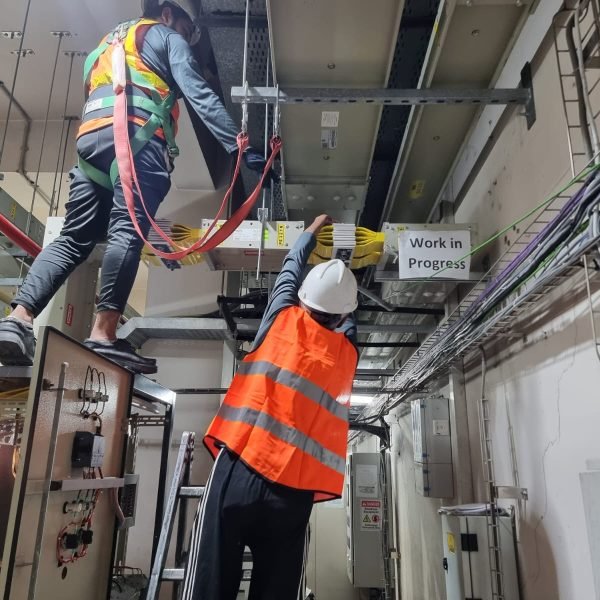

Busway Installation
Busway Testing & Commissioning
Thermal Graphic Test
Our
Projects
Akbari Glass & Aluminium

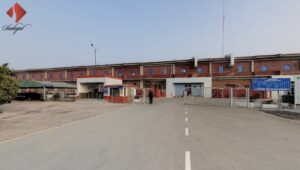

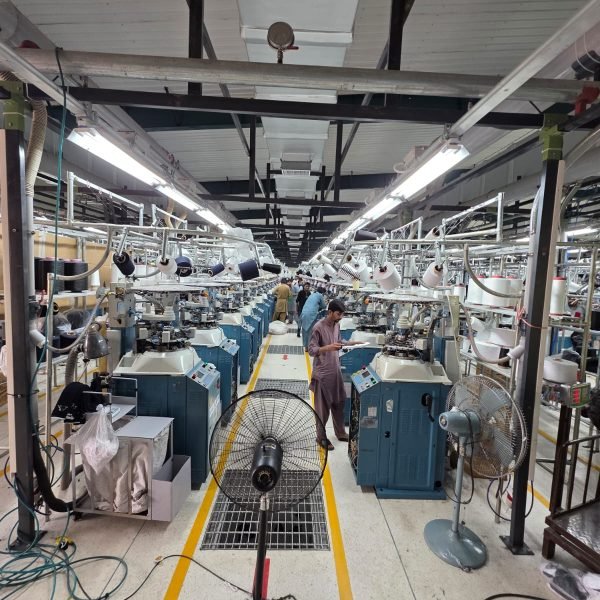

Sadaqat Textile Mill
Al-Ghani Mall
AJ Tower
Grand Hayyat

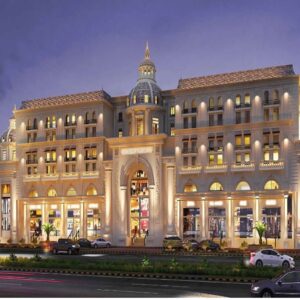

Gulberg Heights
Our Expertise
Macht specializes in designing and manufacturing high quality and reliable products which meet clients' need.
Our Culture
We develop a good bonding among employees. An effective teamwork begins with two ways communication.
Join Us Now
Join Us Now
Macht is dedicated to achieve the highest standard in workplace and look forward for talented candidates.
- SPECIFICATION
- Corporate Video
-
Quality Control
-
Customers Satisfaction
Technical
Specifications
| Compliance of design standards | IEC 61439-6:2012 – Specific requirements for busway. |
|---|---|

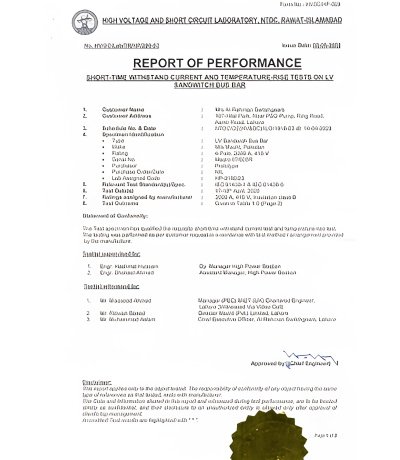

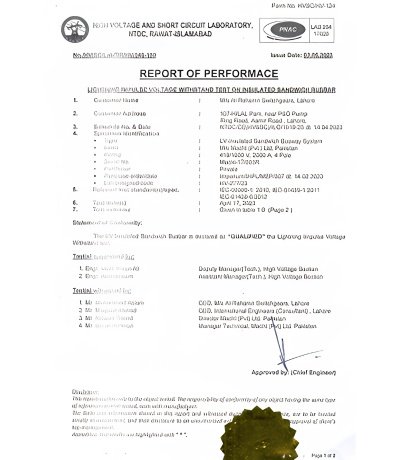

| Certification Authority | NTDC Rawat Lab, Islamabad |
| Short Circuit Capacity | Up to 158kA |
| System voltages | 1000V AC at 50Hz or 60Hz frequency |
| Operating voltages | 1000V AC at 50Hz or 60Hz frequency |
| Busbar Conductor |
Copper/Aluminium Busbar plating Tin/Silver plating (optional) |
| Current rating |
Compact Type 60A – 400A for Copper conductor 60A – 400A for Aluminium conductor Sandwich Type 400A – 6300A for Copper conductor 630A – 5000A for Aluminium conductor |
| Type of insulation |
Epoxy Resin & Mylar Neutral busbar size: 100/200% (optional) Internal earth busbar: 100% Internal earth busbar (optional): 50% Maximum temperature rise: 120ºC |
| Busway Enclosures | Galvanised Steel, Extruded Aluminium with cooling Fin and Stainless Steel |
| Housing finishing | Extruded Aluminum with cooling fin |
| Degree of protection | Indoor Installation IP55 & Outdoor Installation IP65 |
