Compact Air Insulated
(63A,100A and 160A)

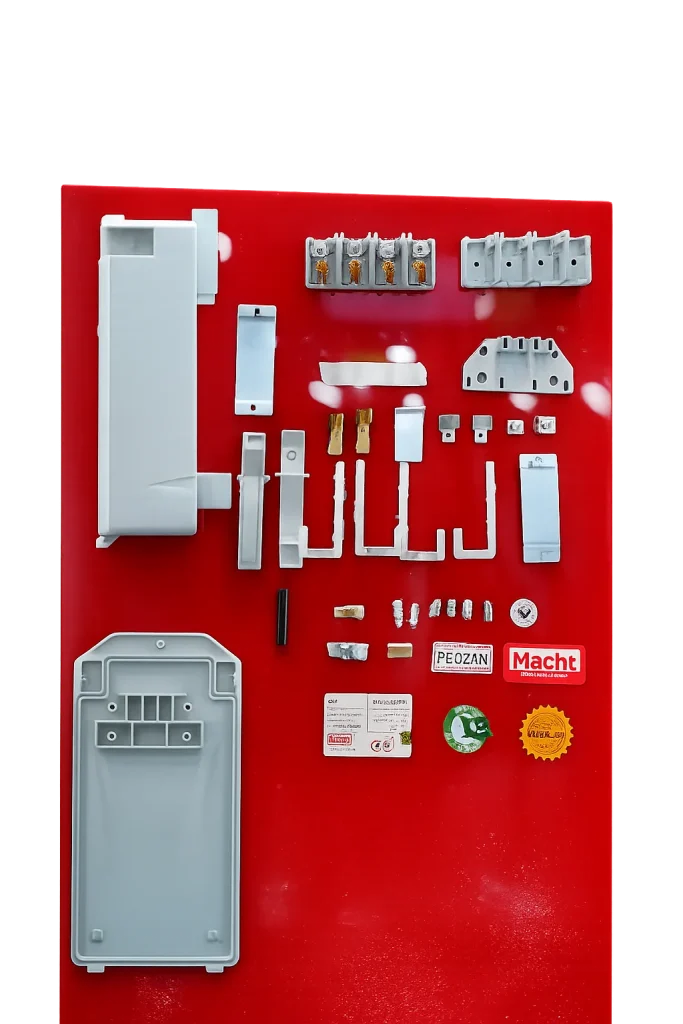

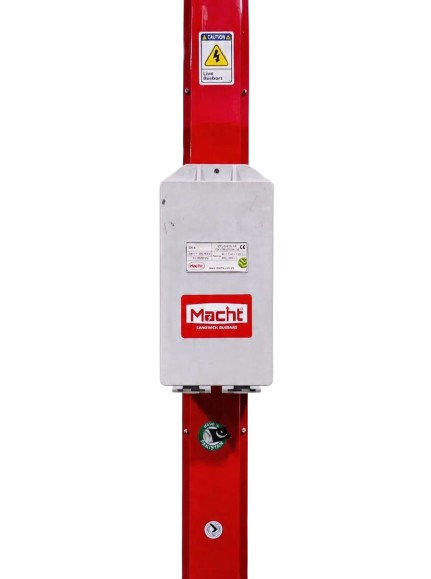

Compact Air-Insulated Busways (63A, 100A, 160A)
MACHT Compact Air-Insulated Busways (63A, 100A, 160A) provide space-efficient, high-performance electrical distribution for industrial, commercial, and high-rise buildings. Engineered using air as the insulating medium, these busways deliver high current capacity while minimizing system dimensions and installation footprint.
Constructed with copper or aluminum busbars, they ensure durability, consistent performance, and safe operation, making them ideal for modern, demanding electrical infrastructure
Key features
Space-efficient design: Compact layout reduces installation footprint.
High current capacity: Optimized for 63A, 100A, and 160A systems.
Safe & reliable: Air-insulated design ensures minimal fault risk.
Durable construction: Copper or aluminium busbars for long-term performance.
Flexible & modular: Easy to install, maintain, and expand.
Applications
MACHT air-insulated busways are perfect for
Industrial facilities
Commercial buildings
High-rise structures
Data centres and critical infrastructure
Why Choose MACHT
- Premium Engineering: Designed to meet international safety and performance standards.
- Modular Flexibility: Easily expandable to adapt to growing power needs.
- Reliable Performance: Consistent, long-term operation in demanding environments.
- Trusted Materials: Copper or aluminium busbars engineered for durability
Technical Highlights
- Rated Currents: 63A, 100A, 160A
- Insulation Medium: Air between busbars
- Construction: Copper or aluminium busbars
- Installation: Modular, flexible, easy to maintain and expand
Technical Specifications
| TECHNICAL SPECIFICATIONS | ALUMINUM | COPPER | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal current | In | [A] | 63 | 100 | 160 | 63 | 100 | 160 |
| Dimensions | D | [mm] | 100x43 | 100x43 | 100x43 | 100x43 | 100x43 | 100x43 |
| Execution | 5P | 5P | 5P | 5P | 5P | 5P | ||
| Weight | [kg/m] | 1.45 | 1.55 | 1.8 | 1.8 | 2.3 | 3.2 | |
| Conductor material | Alu | Alu | Alu | Cu | Cu | Cu | ||
| Rated voltage | Ue | [V] | 400 | 400 | 400 | 400 | 400 | 400 |
| Insulation voltage | Ui | [V] | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Frequency | f | [Hz] | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Cross section phases | Sf | [mm²] | 23 | 36 | 58 | 23 | 36 | 58 |
| Cross section neutral | Sn | [mm²] | 23 | 36 | 58 | 23 | 36 | 58 |
| Cross Section of PE | SPE | [mm²] | 23 | 36 | 58 | 23 | 36 | 58 |
| Conduction Housing Cross Section | SPE | [mm²] | 327 | 327 | 327 | 327 | 327 | 327 |
| Phase resistance | R | [Ω/km] | 1.306 | 0.805 | 0.466 | 0.723 | 0.446 | 0.292 |
| Phase reactance | X | [Ω/km] | 0.119 | 0.098 | 0.078 | 0.12 | 0.098 | 0.079 |
| Phase Impedance | Z | [Ω/km] | 1.312 | 0.811 | 0.473 | 0.733 | 0.457 | 0.302 |
| Neutral resistance | RN | [Ω/km] | 1.306 | 0.805 | 0.466 | 0.723 | 0.446 | 0.466 |
| Neutral reactance | XN | [Ω/km] | 0.119 | 0.098 | 0.078 | 0.12 | 0.098 | 0.466 |
| Neutral impedance | ZN | [Ω/km] | 1.312 | 0.811 | 0.078 | 0.733 | 0.457 | 0.078 |
| PE Resistance (Housing) | RPE | [Ω/km] | 0.466 | 0.466 | 0.466 | 1.306 | 0.805 | 0.466 |
| PE Reactance (Housing) | XPE | [Ω/km] | 0.466 | 0.466 | 0.466 | 0.119 | 0.098 | 0.466 |
| PE Impedance (Housing) | ZPE | [Ω/km] | 0.078 | 0.078 | 0.078 | 1.312 | 0.811 | 0.659 |
| Losses for the Joule effect | [W/m] | 6.35 | 14.89 | 36 | 9 | 13 | 22 | |
| Rated short circuit current | Icw | [kA] | 2.3 | 3.5 | 6 | 2.3 | 6 | 6 |
| Peak current | Ipk | [kA] | 3.45 | 5.25 | 10.2 | 3.45 | 10.2 | 10.2 |
| Degree of Protection | IP | 40-42-55 | 40-42-55 | 40-42-55 | 40-42-55 | 40-42-55 | 40-42-55 | |
| Calorific Power | [kcal/m] | 893 | 893 | 893 | 893 | 893 | 893 | |
| Mechanical protection | IK | 9 | 9 | 9 | 9 | 9 | 9 | |
